Spider. Stabilized Panoramic Automatic Target Acquisition & Recognition System
|
Main characteristics
|
|||||||||||||||||||||
Stabilized Panoramic Automatic Target Acquisition & Recognition System
The SPIDER is a highly sophisticated, wide area, passive, real time, Electro-Optical stabilized Target Acquisition System which automatically detects motion in a wide panoramic view. It can be installed on towers, poles, tripods, etc.
The system incorporates a Thermal Imaging (TI) Camera with a Continuous Zoom Lens, a colored daylight TV Camera, Eyesafe Laser Rangefinder and Laser Pointer.
The SPIDER has two modes of operation:
Panoramic Scan Mode with automatic target acquisition. The scan sector may be selected in azimuth and elevation axes and range. Up to ten scan sectors can be defined.
Observation Mode with live video for target recognition, identification and tracking.
The system is operated and controlled by a Control and Display Unit (CDU) which is equipped with proprietary software.
The CDU is available in two options:
- Ruggedized CDU – for mobile and field applications.
- Commercial PC CDU – for use in climate controlled room.
MAIN FEATURES
EO/IR Gyro-stabilized System.
Sensors:
- Thermal Imaging (TI) Sensor for observation and scanning.
- CCD Camera for observation and scanning.
- Laser Range Finder.
- Laser Pointer for target marking.
Wide panoramic scan and display.
Autonomous 24/7 scan.
Real time automatic intruder detection in Scan Mode - Virtual Fence.
Passive – no RF radiation.
Long and variable ranges for Virtual Fence of several kilometers.
Multi target detection.
Intruder recognition while scanning.
Intruder ID and tracking using Observation Mode.

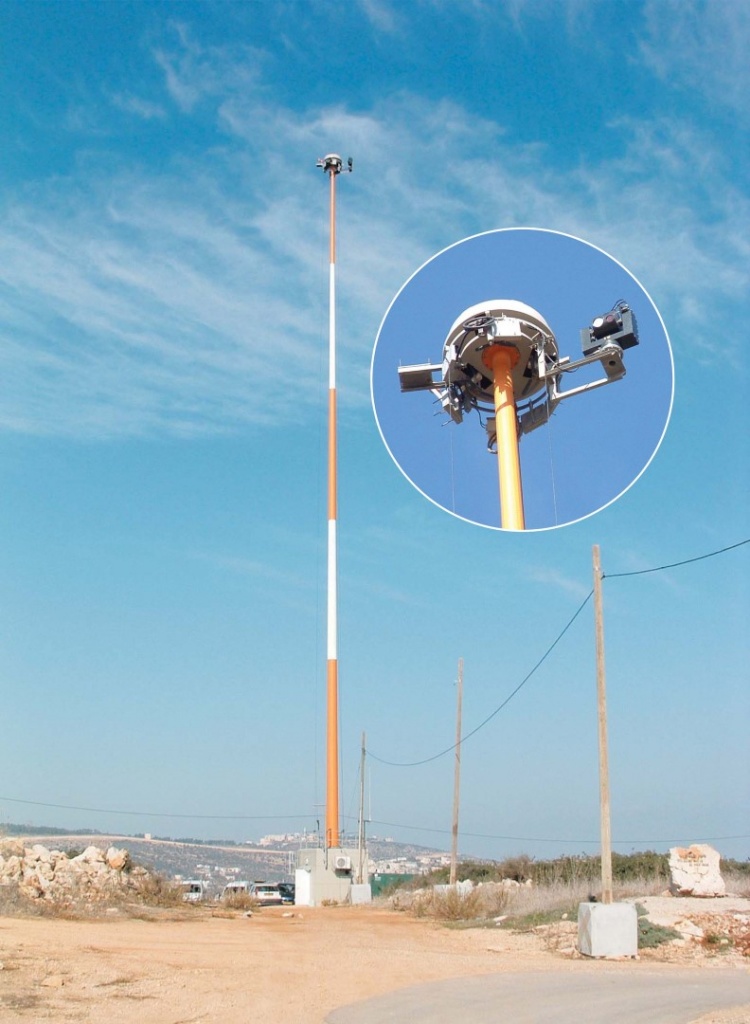

Installation on poles, towers, tripods, etc.
Target acquisition by coordinates.
New concept.
APPLICATIONS
Coastal Surveillance
Border Surveillance
Smuggling
Illegal Immigration
Perimeter Surveillance
Security of Critical Installations:
- Airports.
- Power Plants.
- Fuel Storage Depots.
- Oil Refineries.
Water Reservoirs
Armed Forces Facilities
Offshore Oil/Gas Rigs Security
Military Bases Security
Force Protection
 |  |  |
 |  |  |
