SPEED-LR. Long Range Stabilized Panoramic Automatic Intruder Detection & Recognition System
SPEED-LR
|
Main characteristics
|
|||||||||||||||||||||||
Long Range Stabilized Panoramic Automatic Intruder Detection and Recognition System
The SPEED-LR is a very long range observation and scanning EO/IR system.
The SPEED-LR is a highly sophisticated, wide area, passive, real time, Electro-Optical Stabilized Observation and Intruder Detection System which automatically detects motion in a wide panoramic view.
The SPEED-LR is stabilized so it can be installed on high towers, poles, etc.
The SPEED-LR System incorporates a Thermal Imaging (TI) Camera with a Continuous Zoom Lens, a colored daylight TV Camera, a B/W CCD Spotter camera, an Eyesafe Laser Rangefinder and Laser Pointer.
The SPEED-LR has two modes of operation:
Panoramic Scan Mode with automatic intruder detection. The scan sector may be selected in azimuth and elevation axes and range.
Observation Mode with live video for intruder recognition, identification and tracking.
The SPEED-LR System is operated and controlled by a Control and Display Unit (CDU) which is available in two options:
Ruggedized CDU – for mobile and field applications.
Commercial PC CDU – for use in climate controlled room.
MAIN FEATURES
Very Long Range Observation System.
EO/IR Gyro-stabilized System.
Sensors:
- IR Camera for observation and scanning.
- CCD Camera for observation and scanning.
- B/W CCD Camera for long range observation (Spotter).
- Laser Range Finder.
- Laser Pointer for target marking.
Wide panoramic scan and display.
Autonomous 24/7 scan.
Real time automatic intruder detection in Scan Mode - Virtual Fence.
Passive – no RF radiation.
Long and variable ranges for Virtual Fence of several kilometers.
Multi target detection.
Intruder recognition while scanning.
Intruder ID and tracking using Observation Mode.

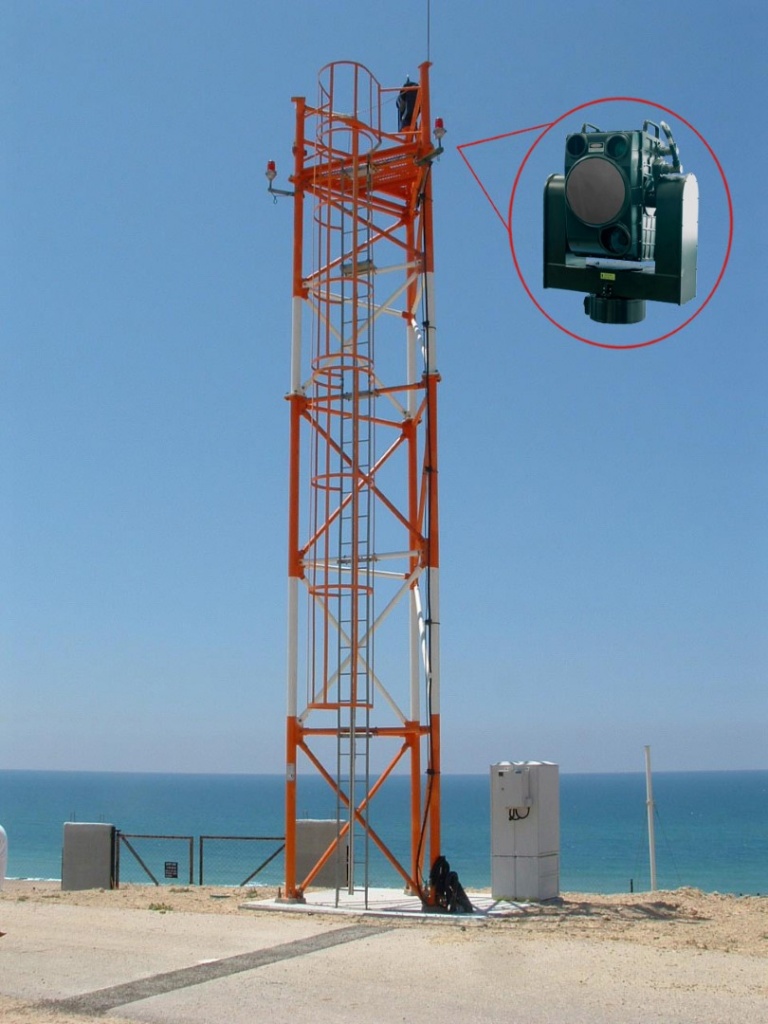

Installation on - poles, towers, etc.
Target acquisition by coordinates.
Optional remote control operations capabilities.
Optional multi-systems operation.
APPLICATIONS
Coastal Surveillance
Border Surveillance
Smuggling
Illegal Immigration
Perimeter Surveillance
Security of Critical Installations:
- Airports
- Power Plants
- Fuel Storage Depots
- Oil Refineries
Water Reservoirs
Armed Forces Facilities
Offshore Oil/Gas Rigs Security
Military Bases Security
Force Protection
 |  |
 |  |
